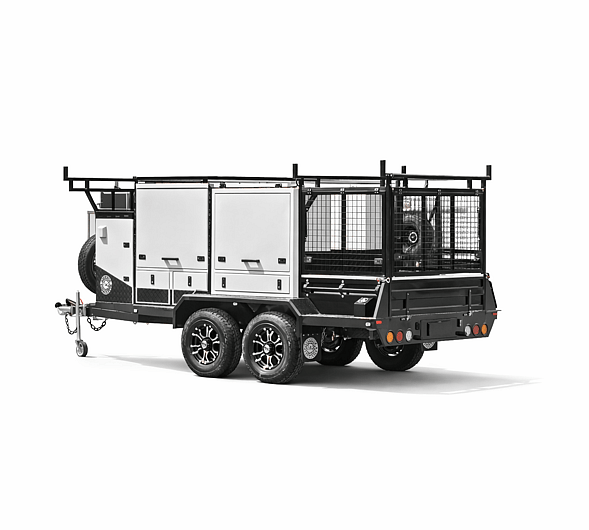

Pro Trade Series TPHv2

Pro Trade Series TPHv2

The Pro trade series TPH V2 is the ultimate trades trailer and what the
world has been waiting for, we believe this is one of the greatest designed
tradesman trailers to ever hit the market with huge storage solutions but
still having rear deck space for those items to be thrown in the back and
not take up valuable storage room with it also being lockable and safe.



BUILT TOUGH, TO PLAY TOUGH

Pro Trade Series TPHv2

Tare: 1850kg (without added options)
GVM: 3500kg
Payload: 1650kg
Ball Weight: 180kg (Dry)
Overall Size: 5650mm(L) x 2300mm(W) x 2280mm(H)

BODY SPECIFICATION

  • Heavy duty one-piece RHS chassis 100x50x4mm that’s fully hot dip galvanized and powder coated.
  • Precision CNC Laser cut and Pressed Manufacturing processes
  • Pressed rear tail gate and sides 400mm high
  • 2.5mm Aluminum front box, canopy and rear boxes to reduce weight but also keep strength
  • Our trailers are fully powder coated
  • The rear Deck section on the TP-H V2 is 1200mm Long x 1570mm Wide (internal) and also have space between the boxes of 1170mm long x 600mm wide

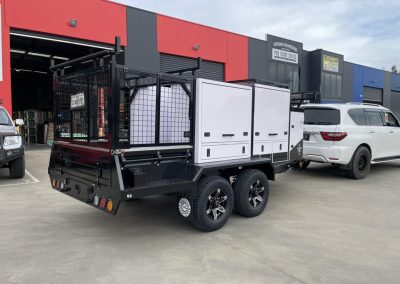

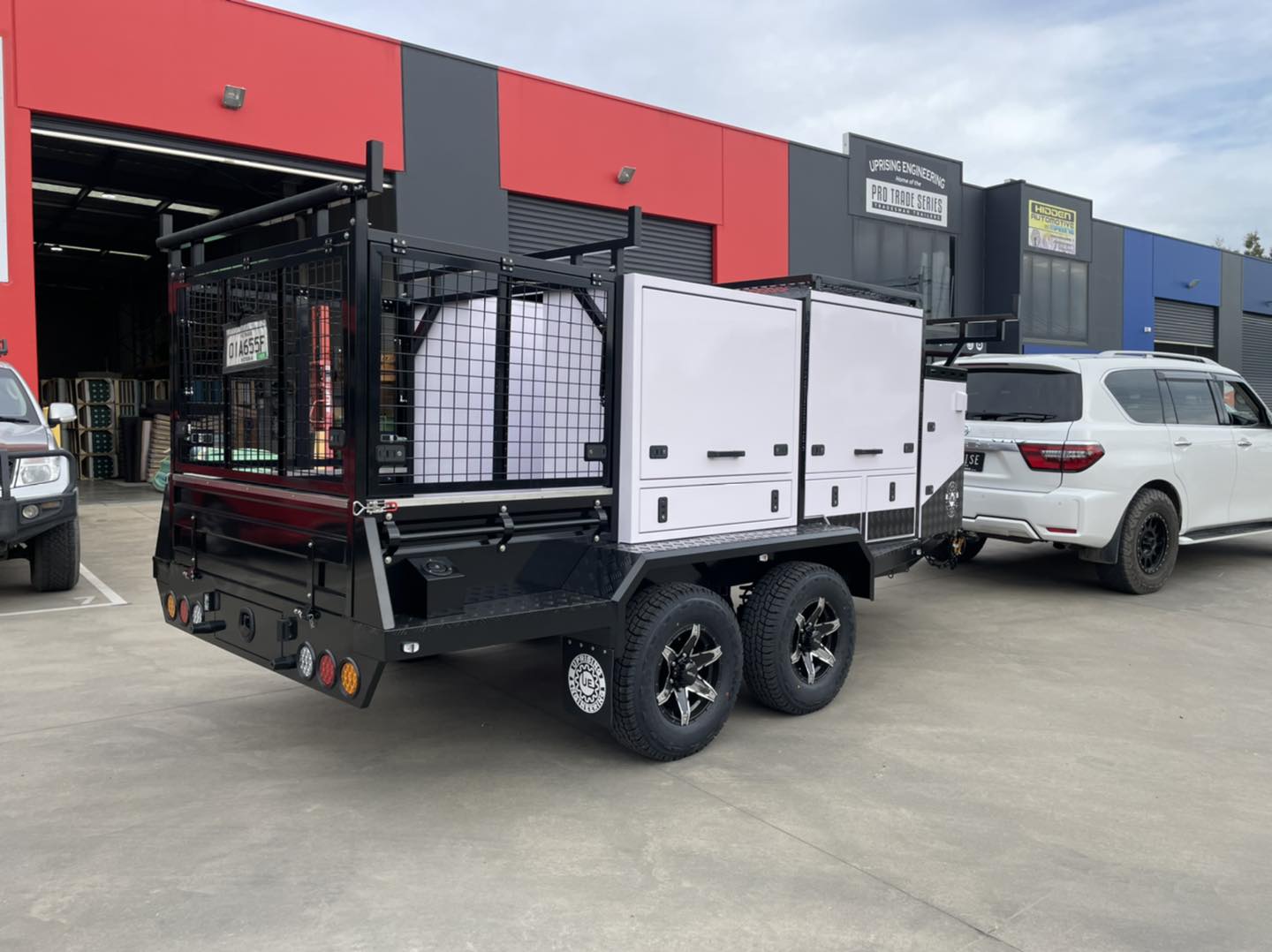

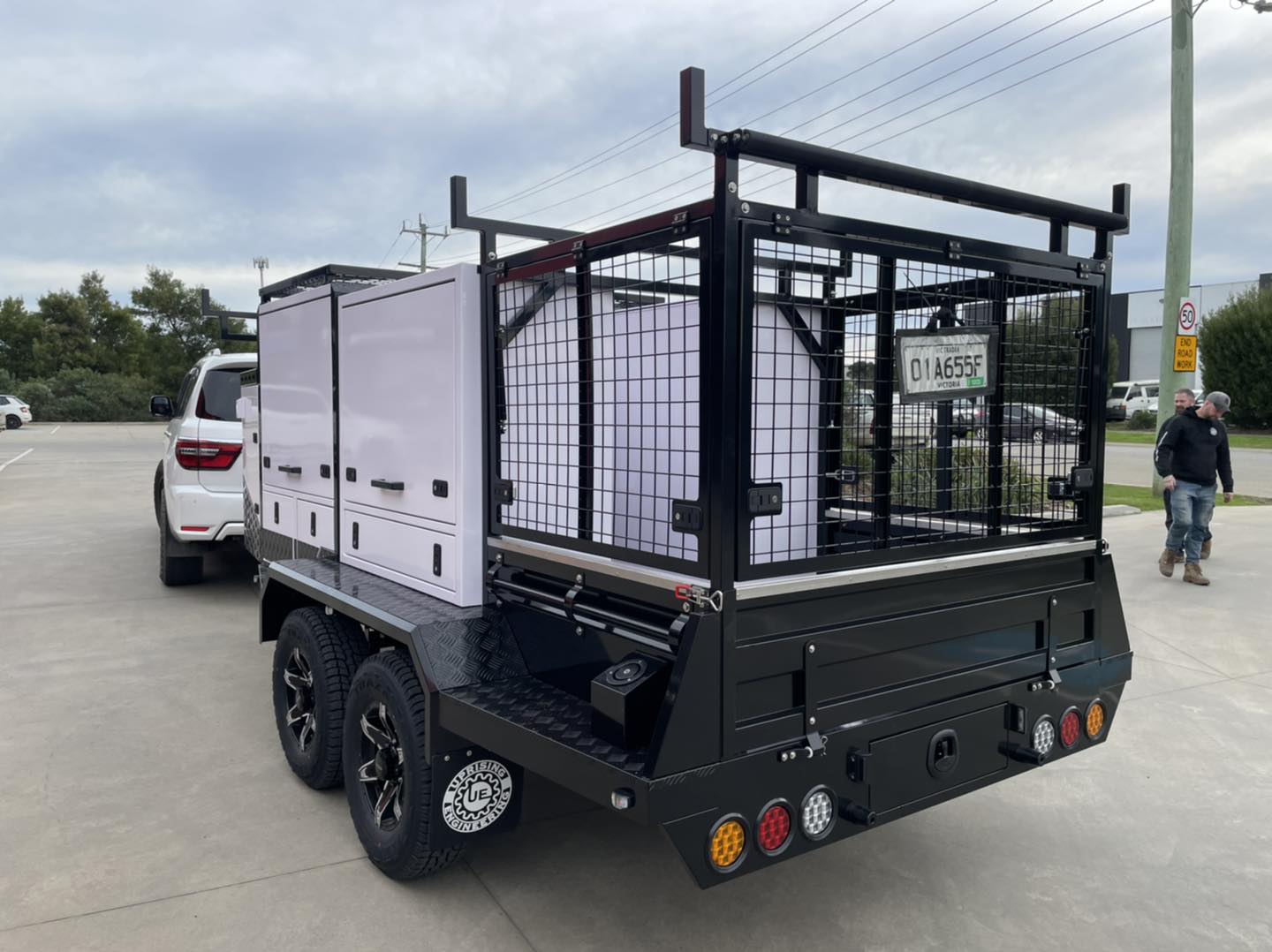

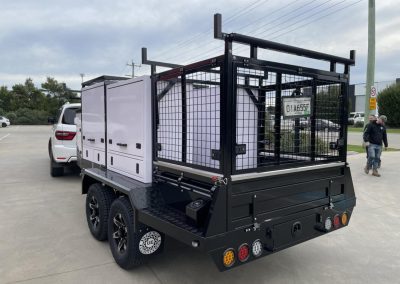

  • The rear section on this model has lockable, gas strutted mesh side walls for extra security
  • Front draw bar load support rack that’s removable
  • Aluminum stone protection plates and foot treads all round
  • Automotive seals and gas struts on all doors and draws
  • Compression locks on all doors and storage compartments
  • Rope tie rails each side and stainless top caps on sides to reduce wear and scratching

RUNNING GEAR

  • Independent swing arm suspension with flat top coils and twin shock absorbers
  • Dual 12’’ electric brake hubs with 6 stud Land cruiser stud pattern (139.7 PCD)
  • 5 x 15″ Primal Alloy rims and quality tyres
  • Premium XO series jockey wheel with twin rubber Tyre and fully adjustable heights
  • 3500kg Tow Coupling to suit 1 7/8”ball with handbrake

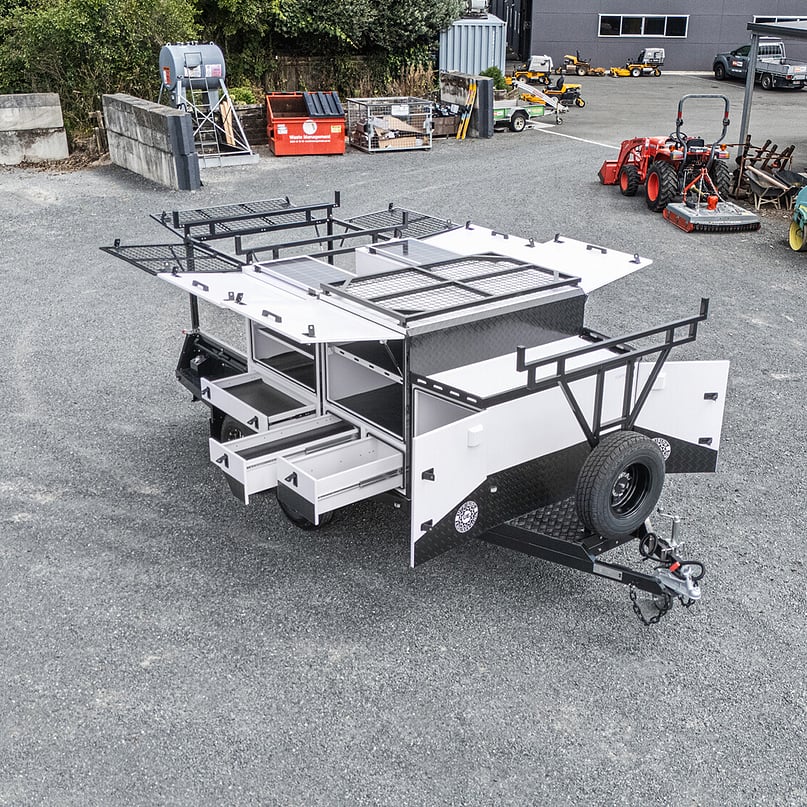

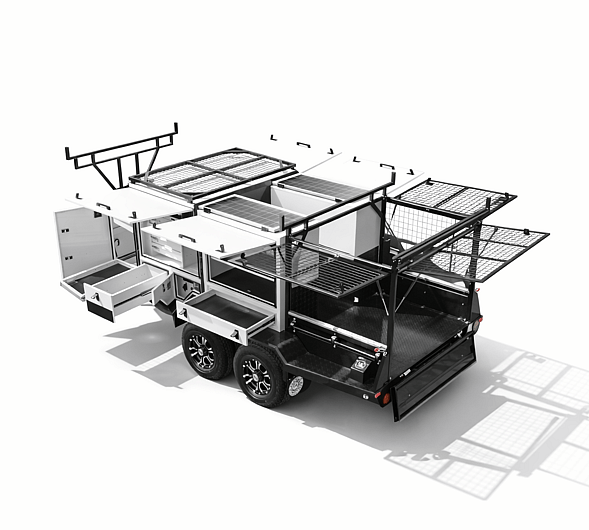

STORAGE

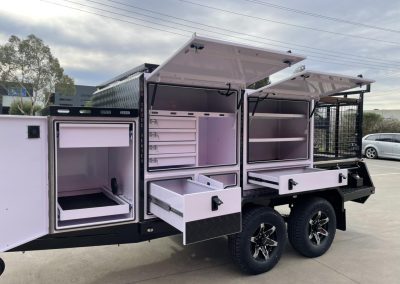

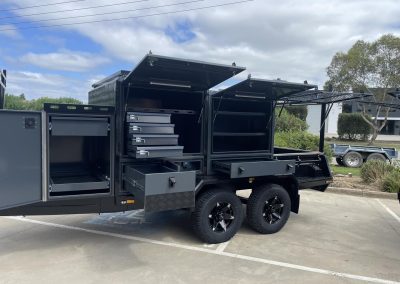

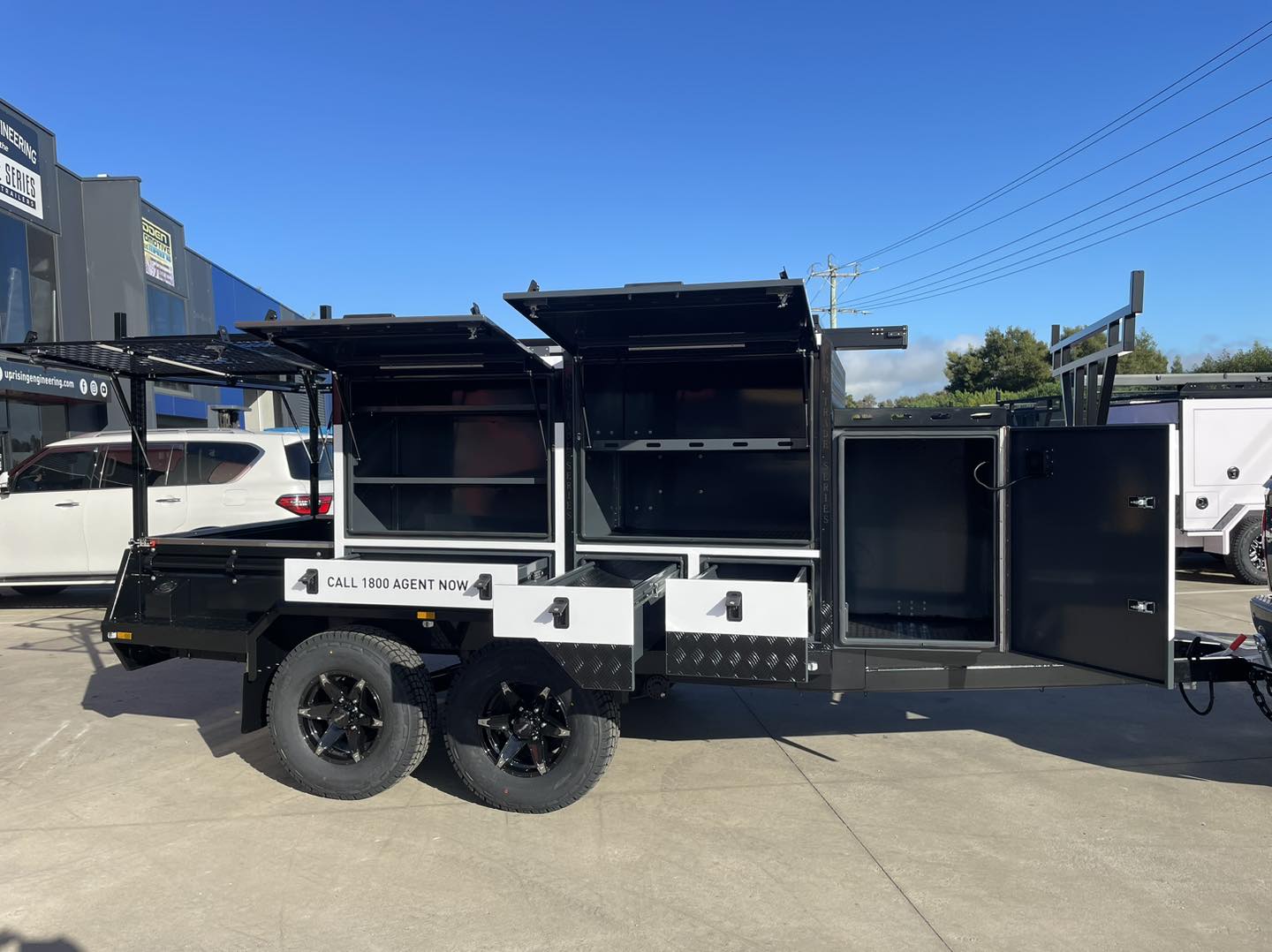

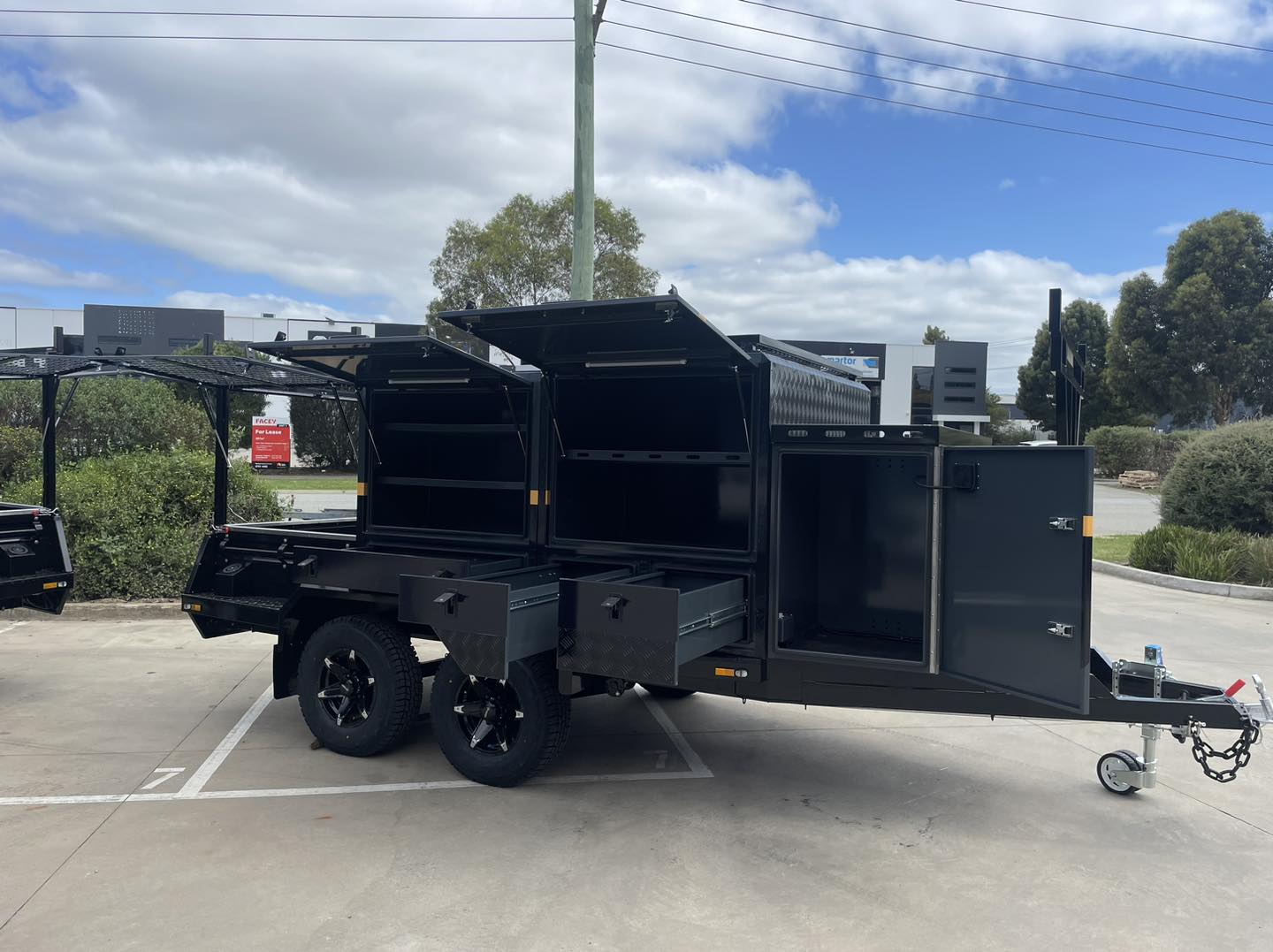

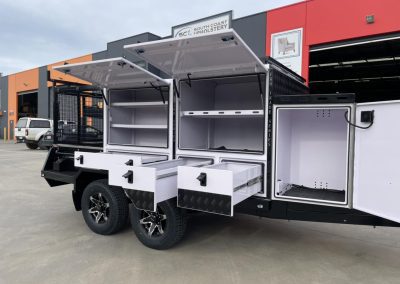

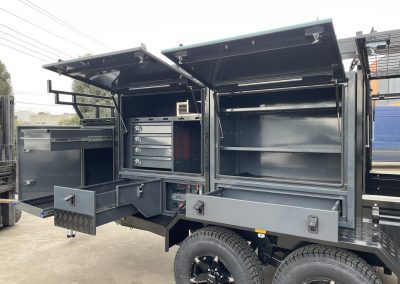

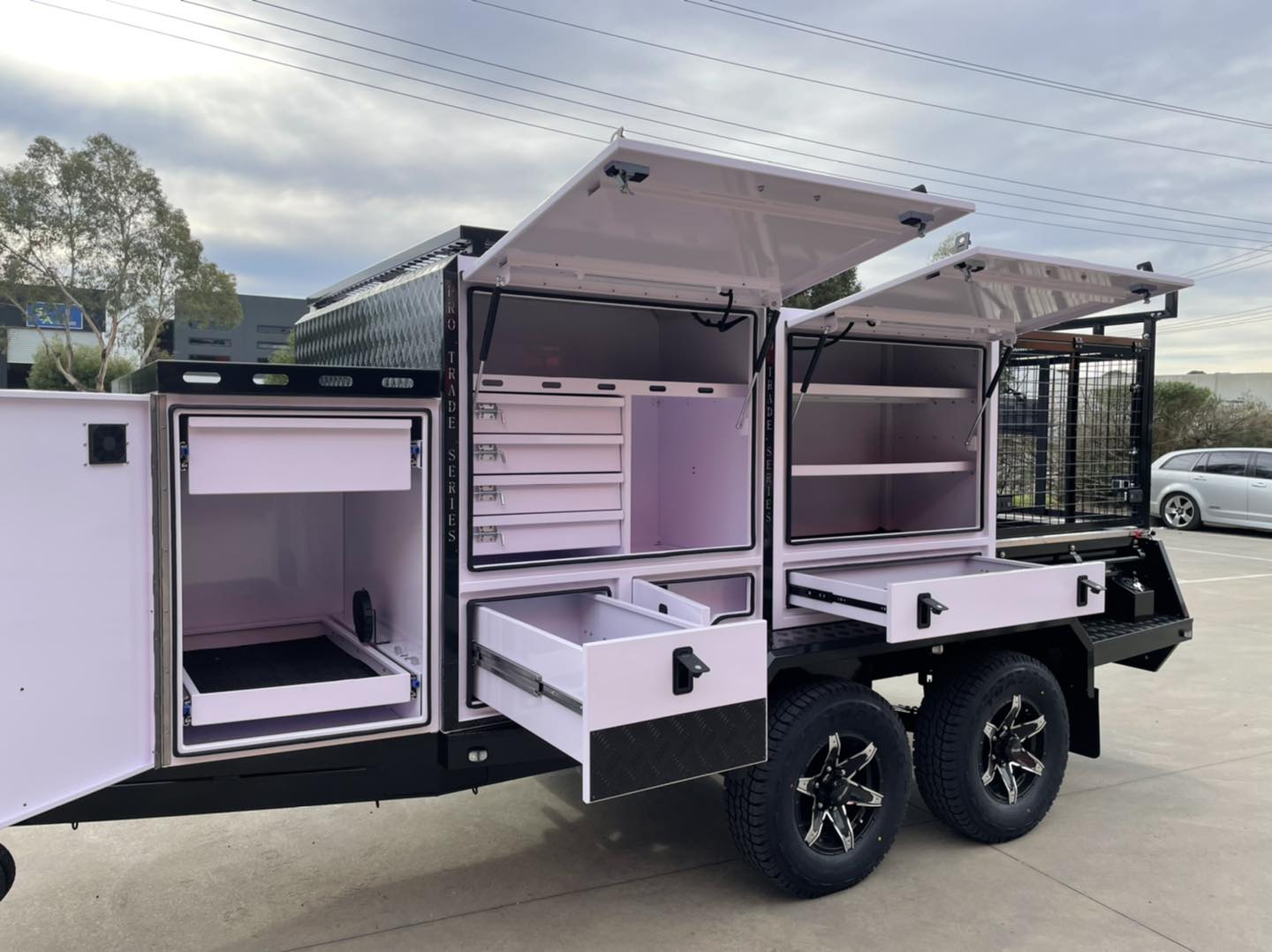

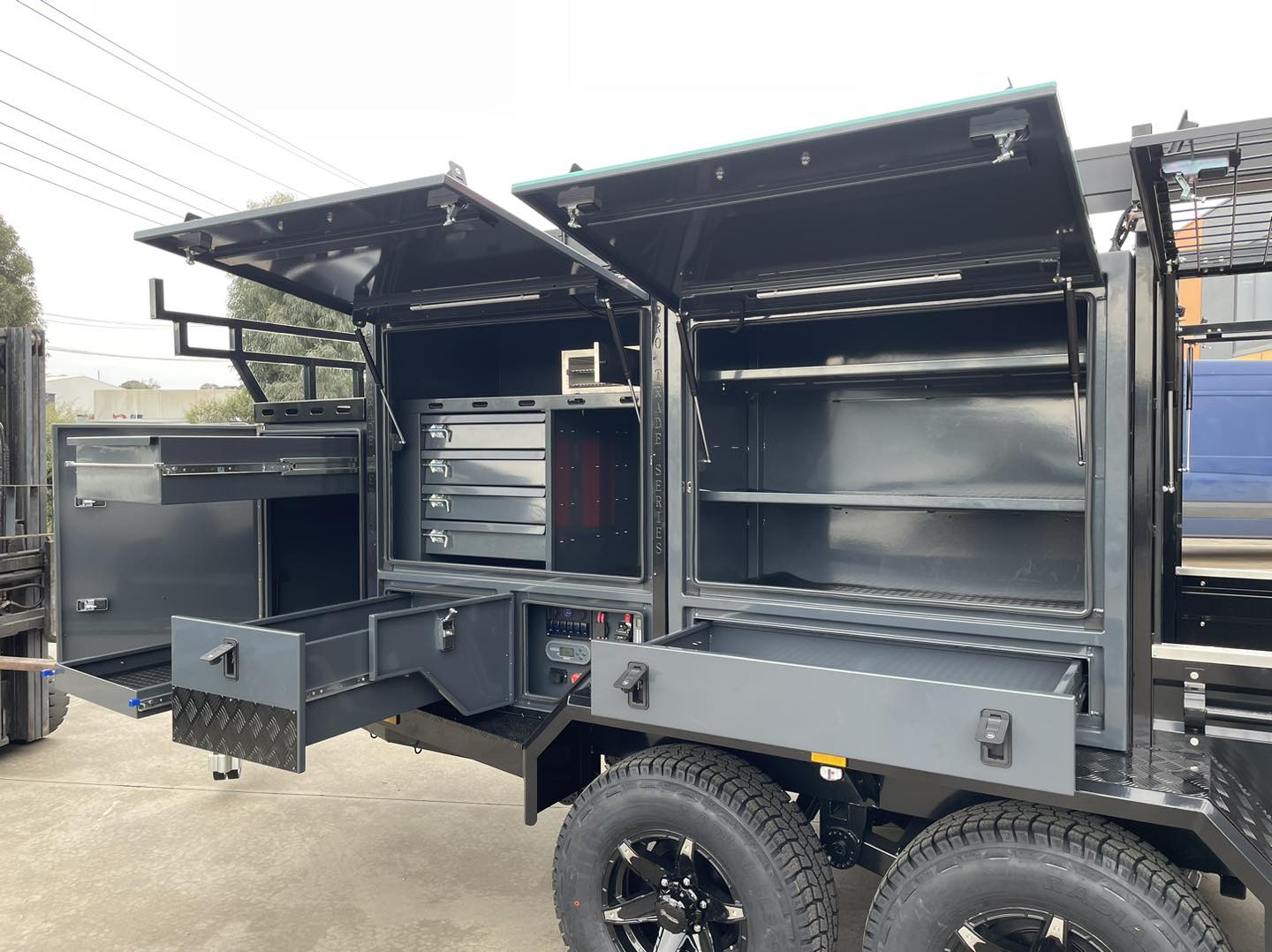

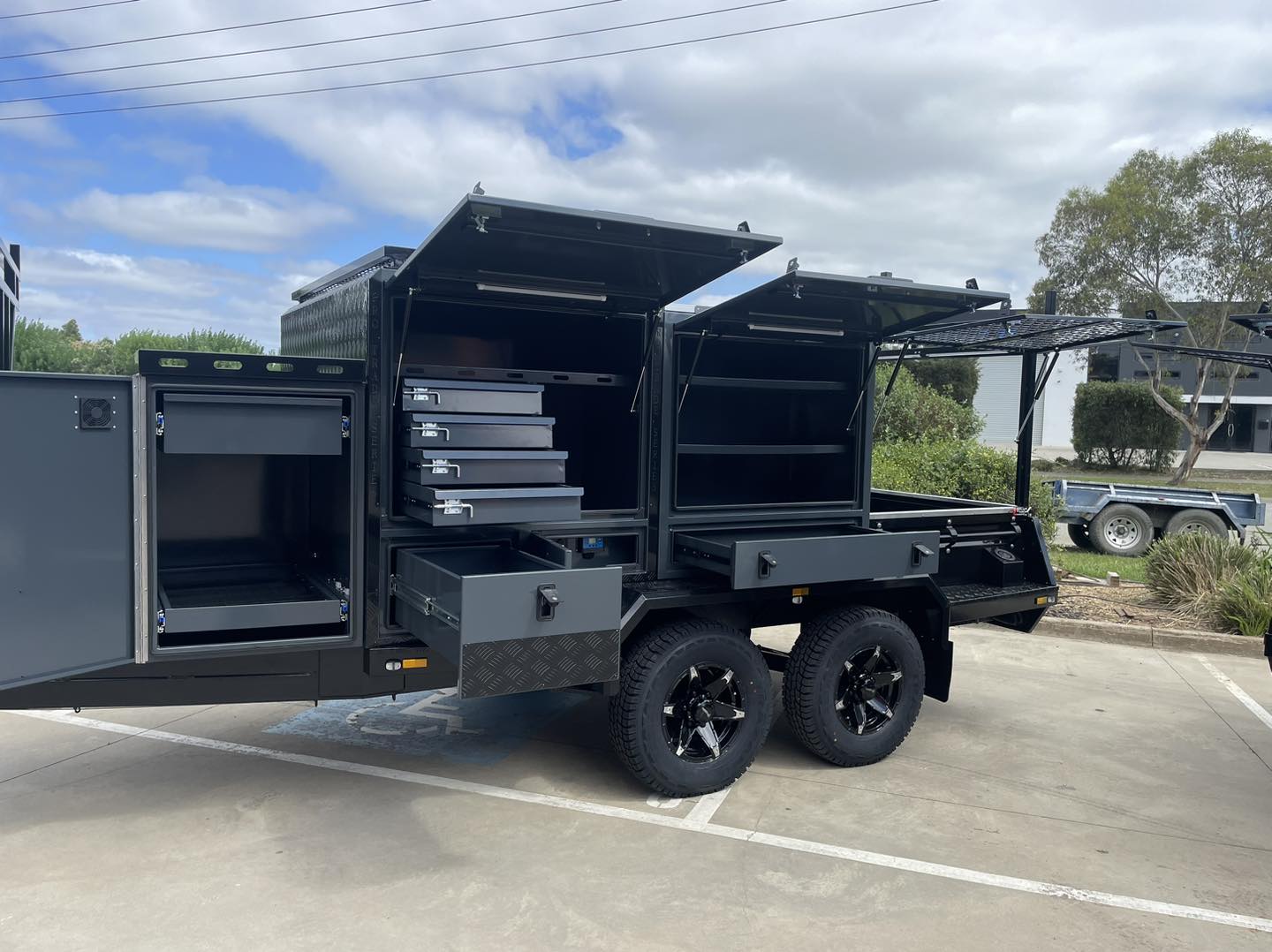

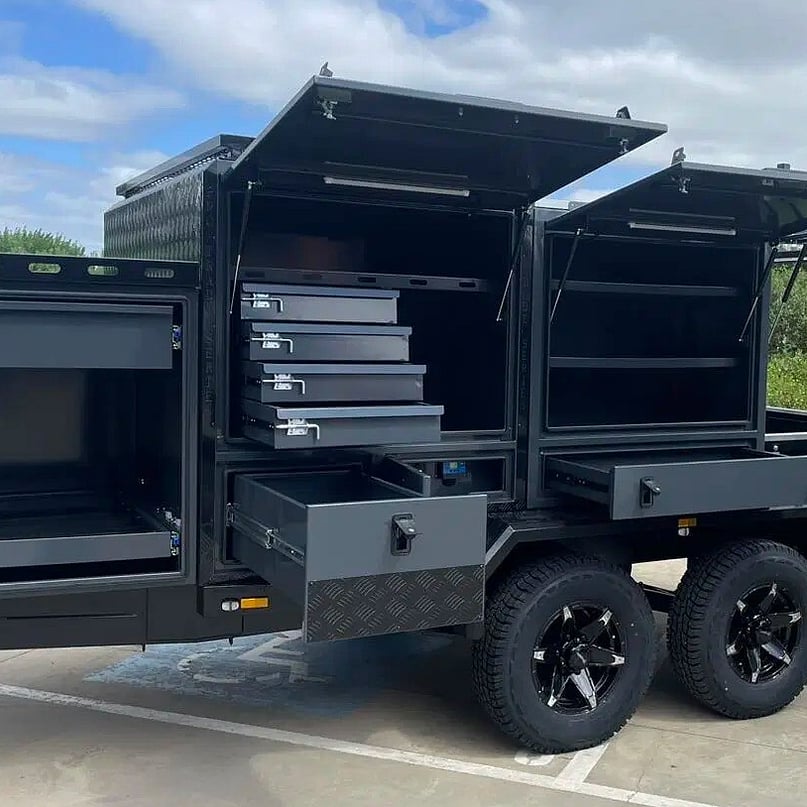

  • Main canopy storage compartment (Left side)
  • 1200 wide x 700 deep to wall
  • Floor to shelf 570 high – Shelf to roof 380 high – shelf is 600 deep
  •  Bottom section beside tool boxes is 700 deep x 500 wide x 570 high
  •  Tool boxes have 4 draws at 120mm high x 540 wide x 550 long
  •  Bottom Storage draw is 390 wide x 870 long x 260 high

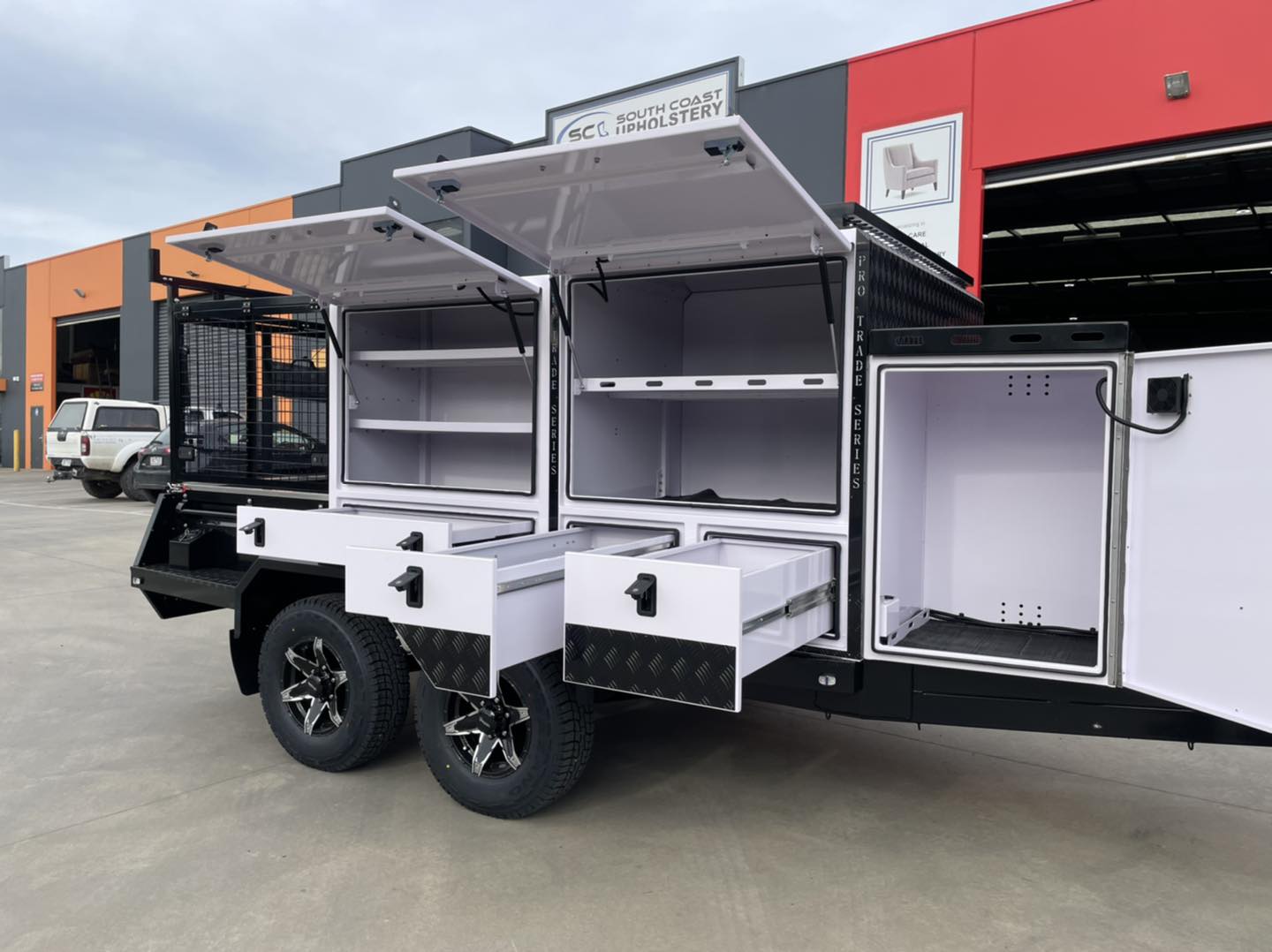

  • Main canopy storage compartment (Right side)
  • 1200 wide x 1040 deep to wall
  • Floor to shelf 460mm high , shelf to roof 480mm high – shelf is 980 deep
  • Bottom storage draws 390 wide x 870 long x 260 high

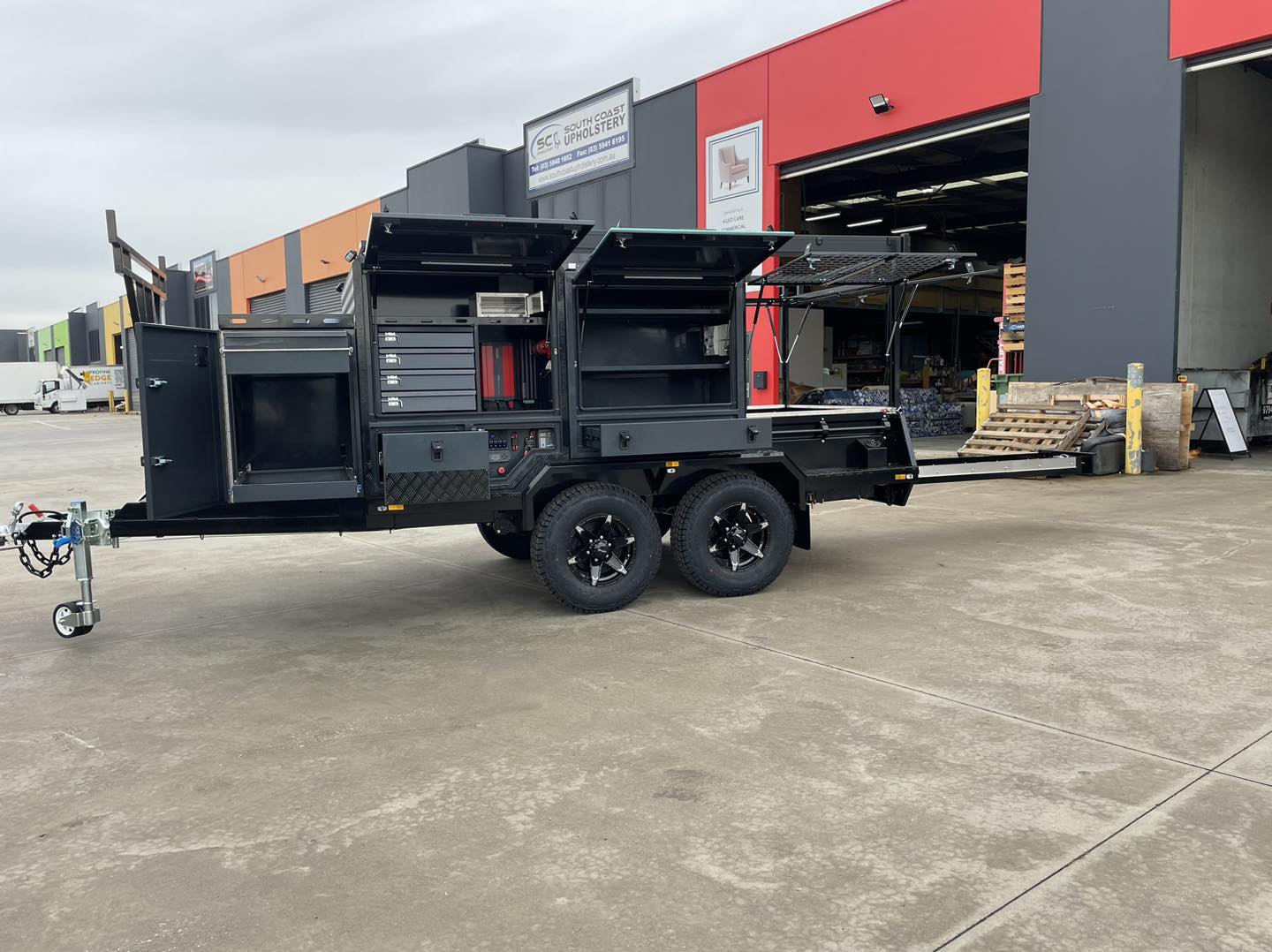

  • Front storage fridge box
  • Enclosed front storage Box with fridge slide, storage draw and open compartment on opposite side 1800mm long x 700mm wide (both sides of this box has 12 volt Anderson plug power sockets and a fan)
  • Fridge Slide size area is  850(L) x 550(W) x 600(H- to top of draw)
  • Draw above fridge area is 830 (L) x 530 (W) x 190 (H)
  • Storage rail system on top of front box for additional items to be carried
  • Right side of this box has an area of 700 (W) x 680 (D) x 850 (H – from floor to roof)
  • Both rear boxes are the same layout
  • Bottom platform is 1170 wide x 550mm deep
  • 2x ajustable shelving platforms in the main compartment 1170mm wide x 500mm Deep
  • bottom pull out draw 950mm Wide x 550mm deep

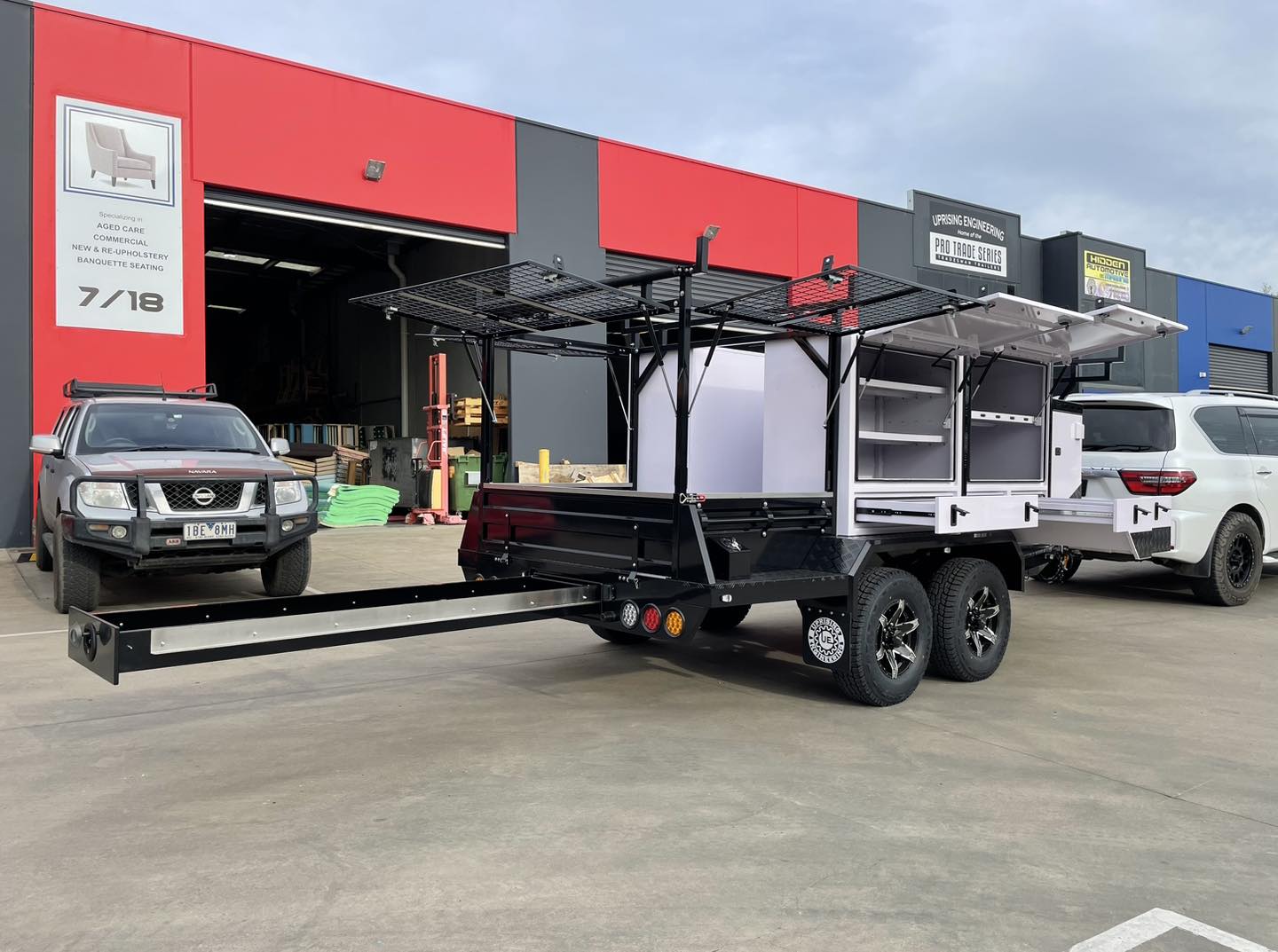

  • Rear trundle draw system
  • This rear draw is designed on full ball bearing guides due to its size and strength, size of this draw is 3000mm (L) x 500 (W) x 140 (H)

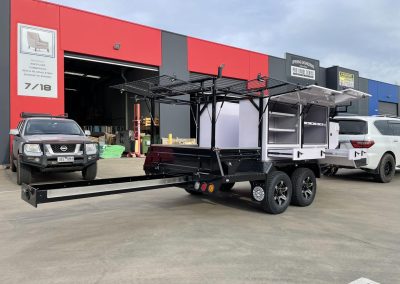

  • H- Frame hurdles
  • Rear H-frame hurdle does have a rear roller to assist with ease of loading
  • H-Frames are 1770 wide internal of the horns or 1850 over all …… horns are 100mm high
  • Water on board
  • Twin 40ltr water tanks each side rear of the trailer

ELECTRICAL

  • Full LED internal canopy lighting with control management panel
  • 2 x 120amp AGM batteries
  • 50amp Anderson plug for charging while driving
  • Twin 100amp solar panels on roof of rear boxes to MPPT solar controller.
  • LED tail lights with reverse light, side marker and front clearance lights
  • Safety Breakaway unit
  • The light switch panel and breaker switches are hidden in drawer like area with swing open door
  • Includes Elecbrake Controller
